What Is a Passive LCD Module and Why Should You Choose It for Your Next Project?

As a part of the team at Victronix, I often get asked about the best solutions for display modules, especially when it comes to the Passive LCD Module. This type of display is widely used in various industries, from consumer electronics to industrial equipment, due to its simplicity, cost-effectiveness, and reliability. But, with so many display options available, it's important to understand what makes the Passive LCD Module a standout choice for your projects. In this blog post, I’ll break down the key features and benefits of Passive LCD Modules, how they differ from their active counterparts, and why they might be the perfect fit for your next design.

What Exactly Is a Passive LCD Module?

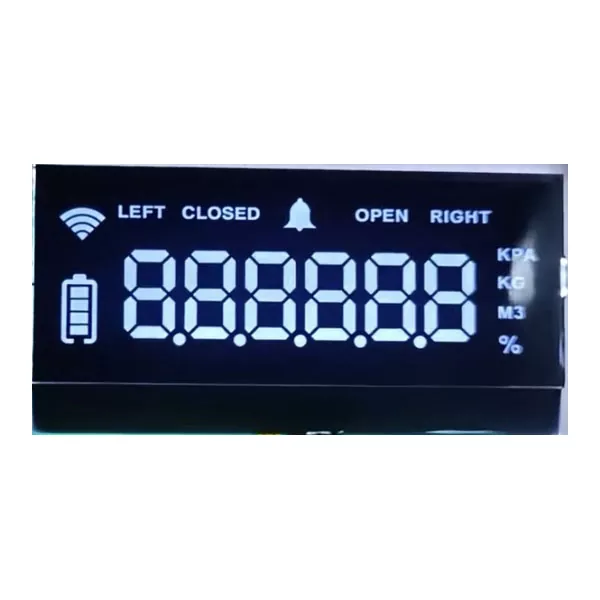

A Passive LCD Module is a type of liquid crystal display that does not require an active matrix to control the pixels. Instead, it relies on a passive matrix, where the display is controlled by intersecting rows and columns of electrodes. This design makes Passive LCDs more cost-effective compared to active matrix displays like TFT (Thin Film Transistor) displays.

Here are the primary characteristics of Passive LCD Modules:

• Cost-Effective: Passive LCDs are simpler to manufacture, leading to a lower overall cost.

• Lower Power Consumption: These displays consume less power, which can be crucial in battery-operated devices.

• Compact Design: Due to their simpler construction, Passive LCD Modules are often thinner and lighter, making them ideal for portable electronics.

How Do Passive LCD Modules Compare to Active LCD Displays?

When choosing between Passive and Active LCD modules, it's crucial to understand their differences. Here's a quick comparison:

Why Should You Choose a Passive LCD Module?

You might be wondering if the simplicity of Passive LCD Modules compromises their functionality. The answer depends on your project’s requirements. Here are some reasons why you might consider using a Passive LCD Module for your design:

1. Budget-Friendly: If you are working with a tight budget or large-scale production, Passive LCD Modules offer a much more affordable solution.

2. Efficiency in Power Usage: In portable devices where power consumption is critical, the low power draw of a Passive LCD Module can extend battery life.

3. Simplicity and Reliability: For many applications, such as basic handheld devices, an Active LCD display isn’t necessary. A Passive LCD Module provides enough functionality and reliability without the extra complexity.

What Are the Key Advantages of Using Passive LCD Modules?

Let’s dive deeper into the key advantages of Passive LCD Modules that make them a smart choice for certain projects:

• Lower Production Costs: Thanks to the simpler design, these modules cost significantly less to produce than active displays.

• Longer Battery Life: Passive LCDs consume less power, which translates to longer device runtime, making them ideal for low-energy devices.

• Simple Display Solutions: These modules offer clear readability for basic applications where high-resolution graphics are not required.

• Versatile Applications: Passive LCDs are commonly used in watches, calculators, industrial control panels, and other low-power devices.

Where Can Passive LCD Modules Be Used?

Here are some of the most common applications of Passive LCD Modules in various industries:

• Consumer Electronics: Simple gadgets like digital clocks, calculators, and small handheld devices.

• Industrial Equipment: Control panels and meters that require basic information displays.

• Automotive: Basic displays for vehicle systems, such as dashboard indicators.

• Medical Devices: Used in devices where power consumption is critical, such as portable medical monitors.

How Can You Benefit from Victronix’s Passive LCD Modules?

At Victronix, we take pride in offering high-quality Passive LCD Modules that meet the needs of various industries. Our modules are designed to be durable, energy-efficient, and cost-effective—making them the perfect choice for your next project. Whether you are developing a basic consumer gadget or an industrial control panel, our team is here to guide you in selecting the ideal module for your needs.

Contact Us for More Information

If you're considering integrating a Passive LCD Module into your next project or if you have any questions, feel free to contact us! Our team at Victronix is ready to help you find the best solution for your design and budget. Don’t hesitate to reach out for a quote or further information. Let’s work together to make your project a success
