How Does a TN TFT LCD Screen Work?
2026-01-21
TN (Twisted Nematic) TFT LCD screens are widely used in industrial devices, gaming monitors, and cost-sensitive electronics. They offer fast response times and reliable performance, making them an economical choice for numerous applications. This article explores how TN TFT LCD technology functions, the key specifications to consider, and common questions regarding their usage.
Table of Contents
- TN TFT LCD Screen Overview
- Working Principle of TN TFT LCD
- Key Specifications
- Advantages and Limitations
- Applications
- FAQs
- Conclusion & Contact

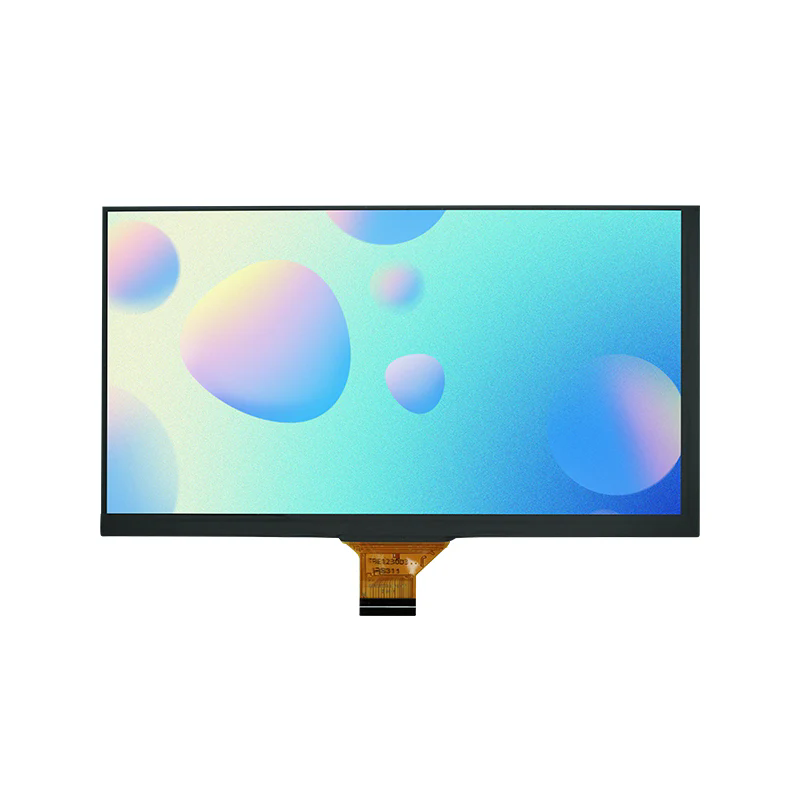

TN TFT LCD Screen Overview
TN TFT LCD screens are a type of liquid crystal display that uses the twisted nematic effect to control light passage through liquid crystals. They are typically thin, energy-efficient, and capable of fast refresh rates, making them ideal for dynamic content.
- Panel Type: TN (Twisted Nematic)
- Technology: Thin-Film Transistor (TFT)
- Response Time: 1ms to 8ms
- Viewing Angle: 120° horizontal, 90° vertical
- Applications: Gaming monitors, industrial displays, handheld devices, budget laptops
Working Principle of TN TFT LCD
The TN TFT LCD operates by manipulating liquid crystals between two polarized layers. When voltage is applied, the crystals twist to control the passage of light. TFT technology adds active switching, enabling individual pixel control, which improves response time and display accuracy.
| Component | Function |
|---|---|
| Liquid Crystals | Twist to control light transmission and image formation |
| Polarizing Filters | Manage light orientation to enhance contrast and clarity |
| TFT Matrix | Acts as a switch for each pixel to improve response and brightness control |
| Backlight | Provides illumination behind the LCD panel |
Key Specifications
When selecting a TN TFT LCD screen, consider the following parameters to ensure optimal performance for your application:
| Parameter | Typical Range | Notes |
|---|---|---|
| Resolution | 800x600 to 1920x1080 | Higher resolution provides better clarity but may affect response speed |
| Response Time | 1ms – 8ms | Faster response reduces motion blur in gaming or video content |
| Brightness | 200 – 400 cd/m² | Important for visibility in bright environments |
| Contrast Ratio | 600:1 – 1000:1 | Defines depth of black and visual quality |
| Viewing Angle | 120° horizontal / 90° vertical | Limited compared to IPS panels; affects color accuracy off-axis |
Advantages and Limitations
Advantages
- Fast response times suitable for gaming and video playback
- Lower cost compared to IPS or VA panels
- Energy-efficient, extending battery life in portable devices
- Compact and lightweight, ideal for space-constrained designs
Limitations
- Narrower viewing angles, colors shift when viewed off-center
- Lower contrast compared to higher-end technologies
- Color reproduction less accurate than IPS or OLED panels
Applications of TN TFT LCD Screens
TN TFT LCD screens are commonly implemented in scenarios where fast performance and cost-efficiency are priorities:
- Gaming monitors requiring low latency
- Industrial control panels and instrumentation
- Handheld and portable electronic devices
- Entry-level laptops and desktop monitors
Frequently Asked Questions
- Q1: Why choose TN TFT LCD over IPS?
- A: TN panels offer faster response times and lower cost, making them ideal for gaming and budget-sensitive applications. However, they have narrower viewing angles and less accurate colors than IPS.
- Q2: Can TN TFT LCD screens display high resolutions?
- A: Yes, TN screens can support resolutions up to 1920x1080 or higher, but ultra-high resolutions may affect refresh performance depending on panel quality.
- Q3: How do I maintain a TN TFT LCD screen?
- A: Avoid direct sunlight and excessive pressure on the screen, clean with a microfiber cloth, and use voltage stabilizers for industrial setups to prolong lifespan.
Conclusion & Contact
TN TFT LCD screens offer a reliable balance of speed, affordability, and efficiency for gaming, industrial, and general electronic applications. TF provides a comprehensive range of TN TFT LCD displays to meet various technical and budgetary requirements. For more information or personalized solutions, contact us today and explore the best TN TFT LCD options for your needs.
