Product Description

ECE R65LED Beacon Warning Light

Replacing old incandescent lighting with the latest LED technology provides an optimum warming signal image with low power consumption. The combination of thermal management and optics in one module makes an incredible compact design possible. polycarbonate lense is highly impact resistant and extremely durable.

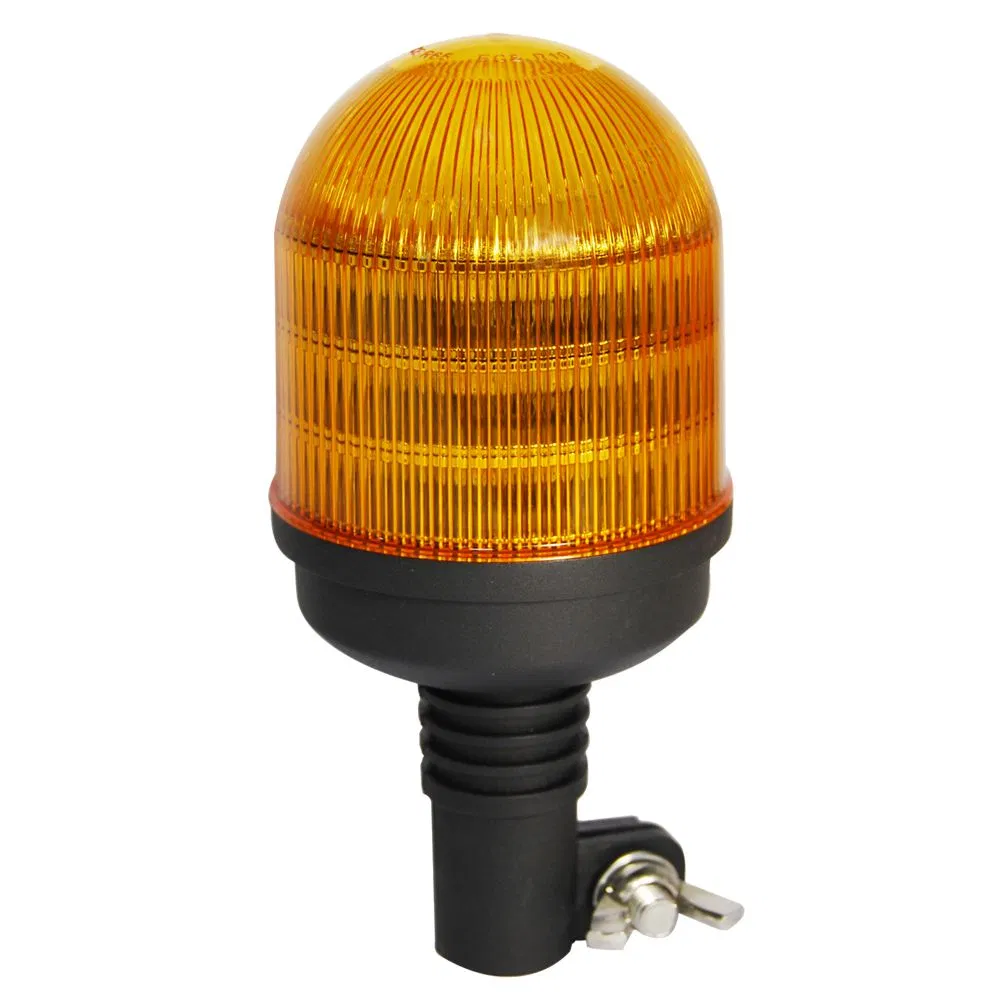

IP69K Waterproof LED Warning Lamp (MODEL:DF-J-CY24)

LED:24x1W High Intensity LED's

Maximum Power Consumption: 28Watts

Maximum Luminous intensity:700 cd(0°~Night)

Waterproof Rating:100% IP69K(100KPa)

Color Temperature: 1800K (Amber)

Flash frequency:2 Hz ≤F ≤ 4 Hz

Approval:ECE R65/ R10(EMC) /SAE J845 Class 1

Light Color: Amber/ Red/ Blue (option)

Alarm way:6 + Switch scintillation and rotation mode through external control line

Flash Mode:
  --RPM187*1
  --RPM125*1
  --FPM222*1
  --FPM125*1
  --FPM125*2
  --FPM125*3

Visibility: 360 Degree

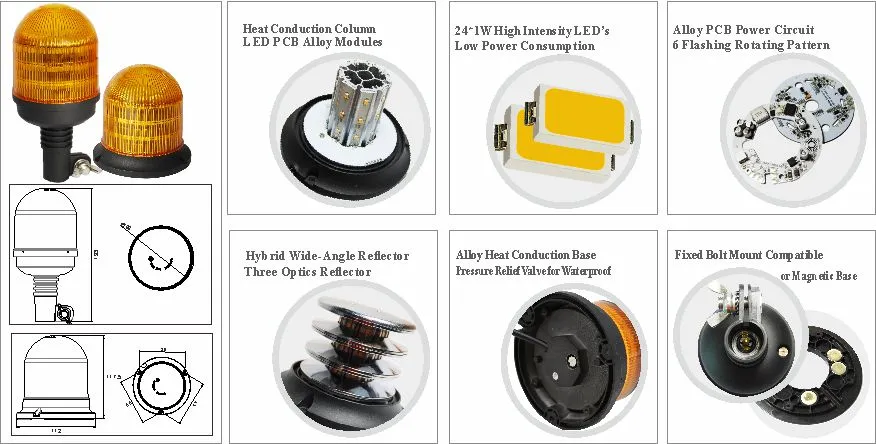

Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Column

Optics Inner Lens:Hybrid Wide-Angle Reflector *3

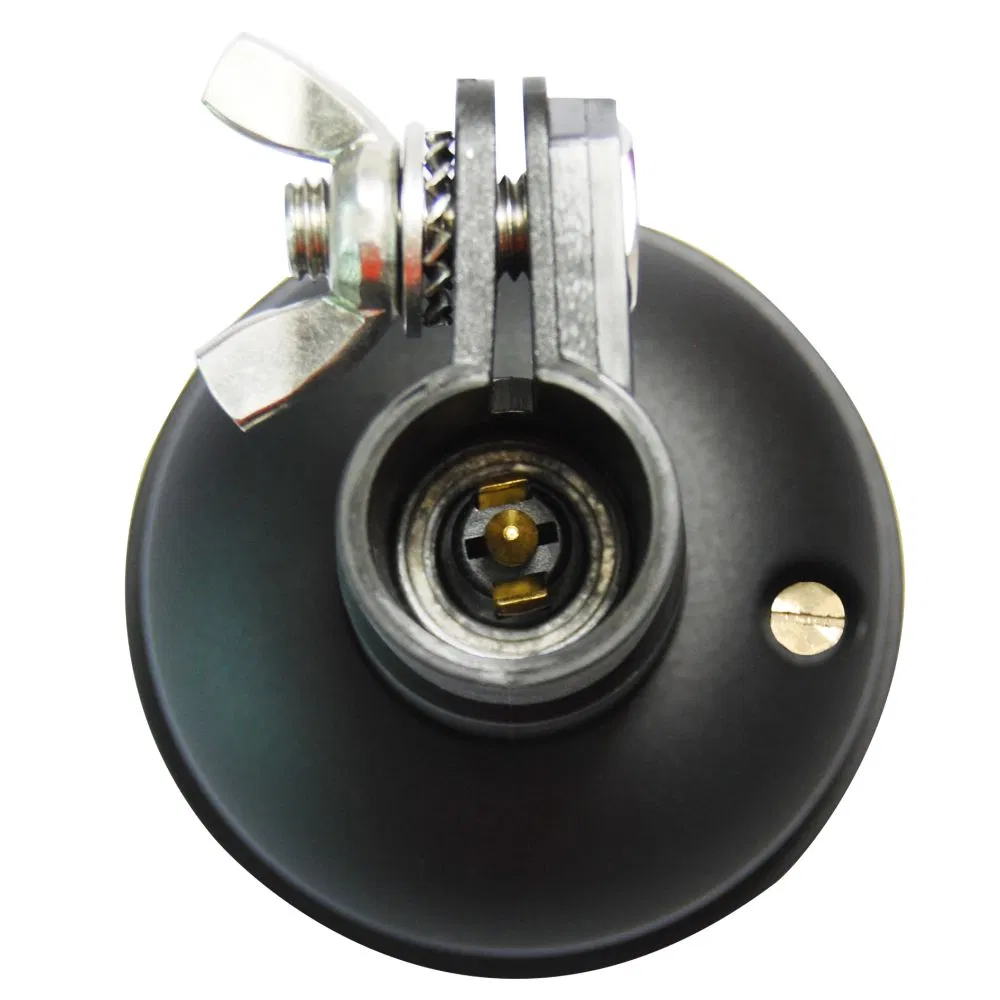

Mounting: Magnetic Base or Fixed Bolt (option)

Load Dump: DC14+67V(Td400mS) 5pulses

Operating temperature: -40ºC to +65ºC

Warranty: 3 years

Shockproof: 10G

Free Operating Voltage::DC10-32V(DC48V Custom-made)

Weight::500g

Dimensions:117.5(H) x112(D) mm

Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc.
