Product Description

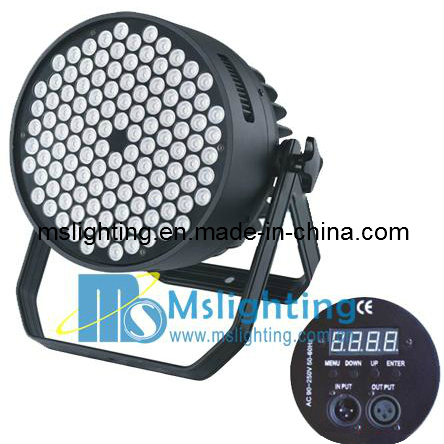

LED high power PAR light is designed by MSLIGHTING Co., Ltd. It adopts in 120 PCS of 1/3W/5W high power LED as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.

The cover is aluminum die-casting, artistic generosity, with excellent polishing. The nice design is good for dispelling heat very well and long life. Though distance from the light fixture to the controller is 20m, the effect is still very good. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting, electronic dimming from 0-100% (no color change) high-speed stroboscopic white or color change; Maximum ambient temperature of 40degree, the largest lamp temperature 60degree.

It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.

Model	LED 3003 (120*1W) RGB/RGBW/RGBA		LED 3003A (120*3W) RGB/RGBW/RGBA	LED 3003B (120*3W) RGB 3IN1	LED 3003C (90*5W) RGB/RGBW/RGBA
Housing Material	Die-Casting Aluminum		Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Housing Color	Black		Black	Black	Black
Aperture Cover	PMMA		PMMA	PMMA	PMMA
Operating voltage	90-130V AC / 176-254V AC		90-130V AC / 176-254V AC	90-130V AC / 176-254V AC	90-130V AC / 176-254V AC
Power	Switch Power Supply		Switch Power Supply	Switch Power Supply	Switch Power Supply
LED current	320mA		680mA	680mA	1.28A
Control Modes	Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization		Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization	Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization	Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization
DMX Channel	7CH/4CH		7CH/4CH	7CH/4CH	7CH/4CH
Control panel	Digital 4 characters alphanumeric		Digital 4 characters alphanumeric	Digital 4 characters alphanumeric	Digital 4 characters alphanumeric
Connector	3-PinXLR (In and Out)		3-PinXLR (In and Out)	3-PinXLR (In and Out)	3-PinXLR (In and Out)
NO.of LED	120*1W LEDS (30R/ 30B/ 30G/30W)		120*3W LEDS (30R/ 30B/ 30G/30W)	120*3in1W LEDS	120*5W LEDS (30R/ 30B/ 30G/30W)
LED Life Time	80000-100,000 hours		80000-100,000 hours	80000-100,000 hours	80000-100,000 hours
Beam Angle	25°/30°/45°/60°		25°/30°/45°/60°	25°/30°/45°/60°	25°/30°/45°/60°
Power Consumption	160W		420W	420W	480W
Light Projecting Distance	20-100M		20-200M	20-20M	20-50M
IP Rating	Indoor IP 20		Indoor IP 20	Indoor IP 20	Indoor IP 20
Operating Temperature	20ºC-+45ºC		20ºC-+45ºC	20ºC-+45ºC	20ºC-+45ºC
Compatibility:
1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216)
2. Dimming 0-100%with regulated constant color control
3.Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable, and save function
5. 7channel Mode and 4channel Mode would change each other in every light
6. 7CH Mode DMX Value		CH 1 _ General dimmer (1-255, from dart to light)
		CH 2_ Red (1-255, Dimmer, from dart to light)
		CH 3 _ Green (1-255, Dimmer, from dart to light)
		CH 4_Blue (1-255, Dimmer, from dart to light)
		CH 5_ White (1-255, Dimmer, from dart to light)
		CH 6_ Strobe & Color change/ color gradual change open
		CH 7 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. 4CH Mode DMX Value		CH 1_ Red (1-255, Dimmer, from dart to light)
		CH 2 _ Green (1-255, Dimmer, from dart to light)
		CH 3_Blue (1-255, Dimmer, from dart to light)
		CH 4_White (1-255, Dimmer, from dart to light)
8. Control modes		0: sound activity mode
		1. DMX control mode
		2. Adjusting the color manual
		3. Adjusting the brightness manual
		4. Adjusting the strobe manual
		5. Adjusting the strobe speed manual
		6. Master-slave control mode, as the master
		7. Sound activity synchronization mode
		8.Adjustingcolor's gradual change manual
		9.Adjustinggradual change's speed.

LED Stage Light/LED PAR Light Wall Washer Light (LED 3003/3003A/3003B/3003C)
